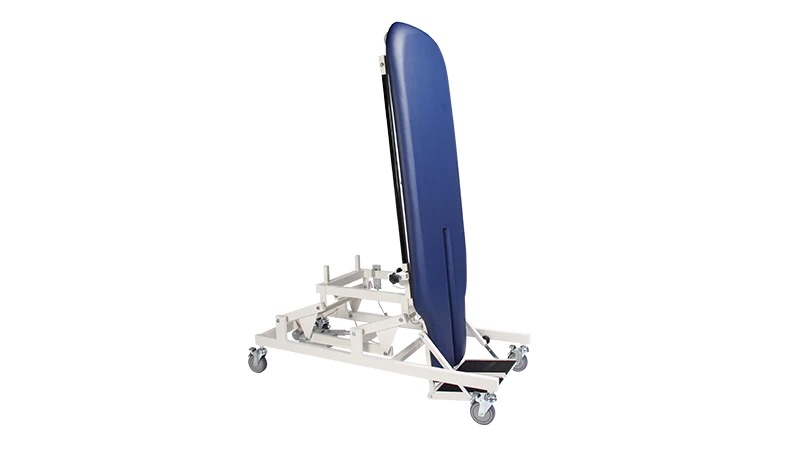

Tiltima 1-Piece Tilt Table with Hand Control
All 4 corners of the CA190 Tiltima® are supported by a 5” inch castor with Swivel Lock and Brake. The Frame Construction is made with Steel Tubes of (a) 6 * 3cm and (b) 7 * 3cm Dimensions and by the thickness of 2mm.
For absolute safety requirement, the CA190 Tiltima® is equipped with a “1-PULL EMERGENCY HANDLE” at the back of table.
Technical Specs:
- Minimum Height: 550mm / 21.65” inch
- Maximum Height: 900mm / 35.43” inch
- Top Height at 90º: 2100mm / 82.67” inch
- Tabletop Width: 650mm / 25.59” inch
- Total Length: 1900mm / 74.80” inch
- Tilt Angle: 0º to 90º
- Lift Mechanism: Electric
- Breathing Hole/Plug: N/A
- Castor's w/h Swivel Lock & Brake: 4
- Weight Rating (Max. Load): 225kgs / 496lbs
- Weight: 231 lbs.
- Package Dimension: 83X34X23”H
